X Ray solar panel - How it Works



MODERN DESIGN AND ABSOLUTELY EASY INSTALLATION

Top performance in winter, perfectly functioning even when the temperature drops drastically.

Examples of typical installations X Ray R Performa

THIRD TUBE AND DISTRIBUTION IN PARALLEL

The X-RAY R solar collector comes with a fully integrated third pipe in the manifold and 3 plumbing connections to ensure equal flow distribution in each collector in the series.

Each collector has a sensor pocket on both sides so that external pipes can be connected on the right or left.

Connections regardless of number of collectors must be carried out as below:

Left hand connection



Right hand connection




Examples of typical installations X Ray R Standard

Left hand connections

Right hand connections

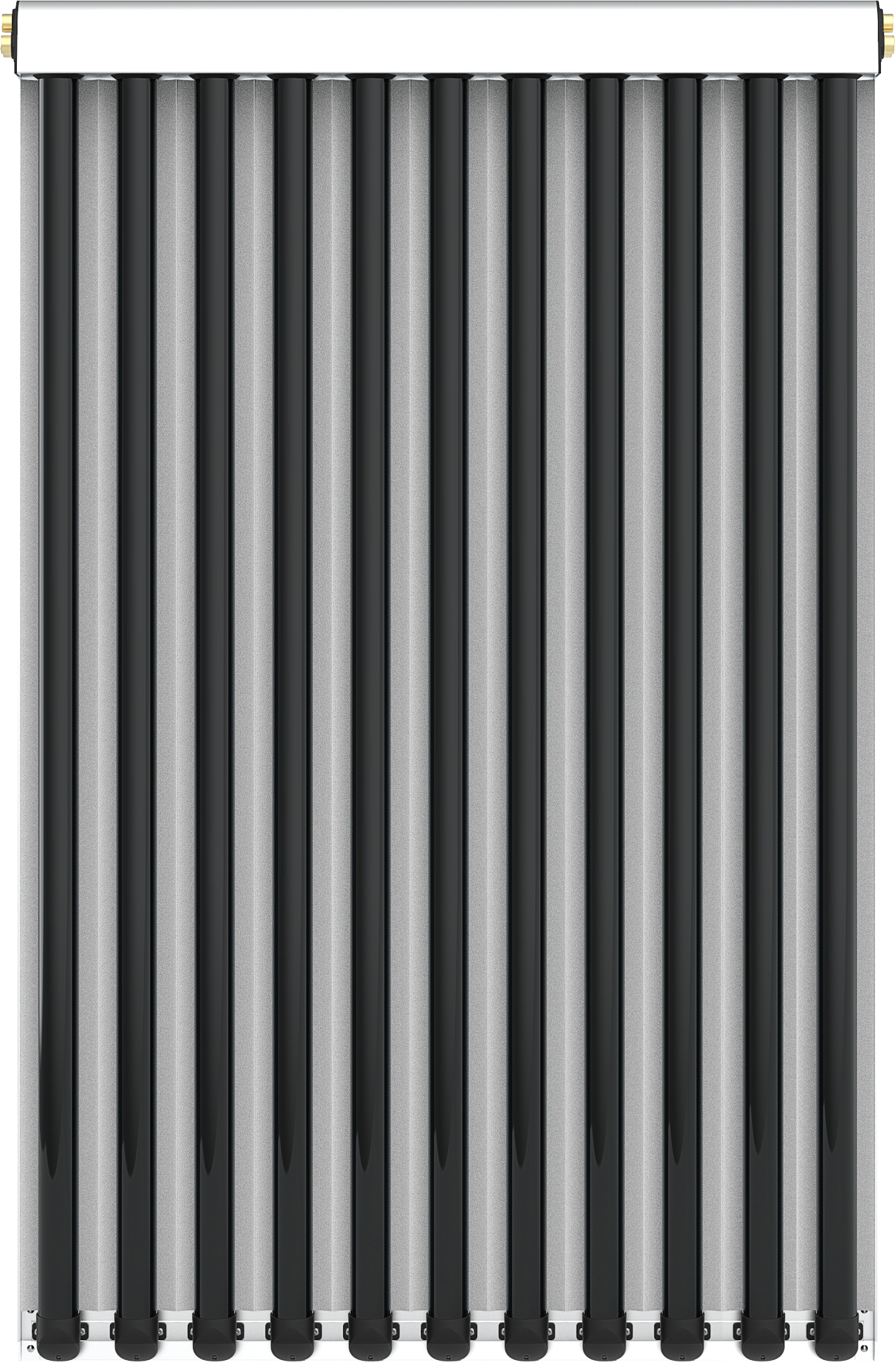

X-ray 11 Brochure

Brochure for the X-ray 11 solar thermal panel with two and three connection options.

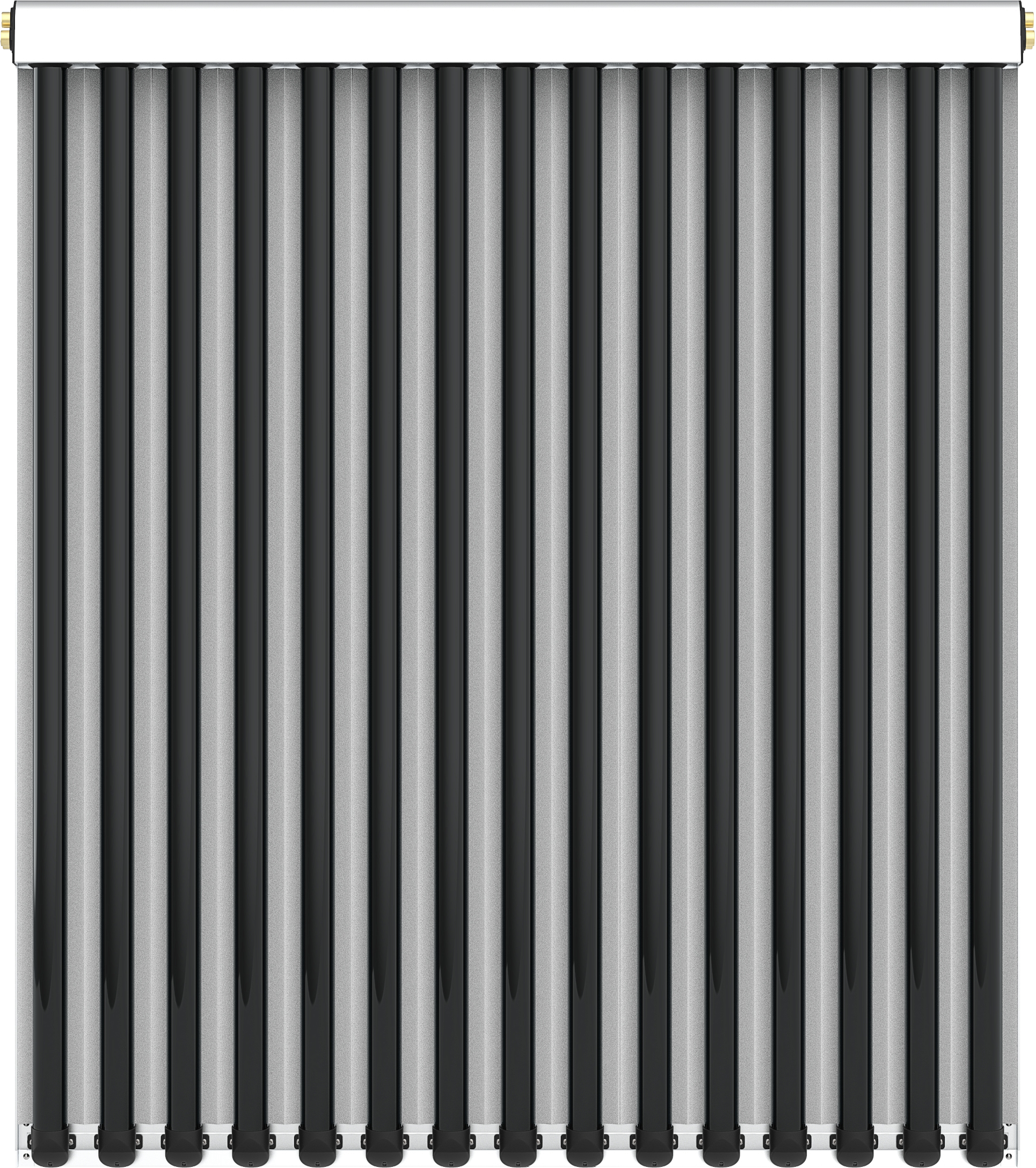

X-ray 15 Brochure

Brochure for the X-ray 15 solar thermal panel with two and three connection options.

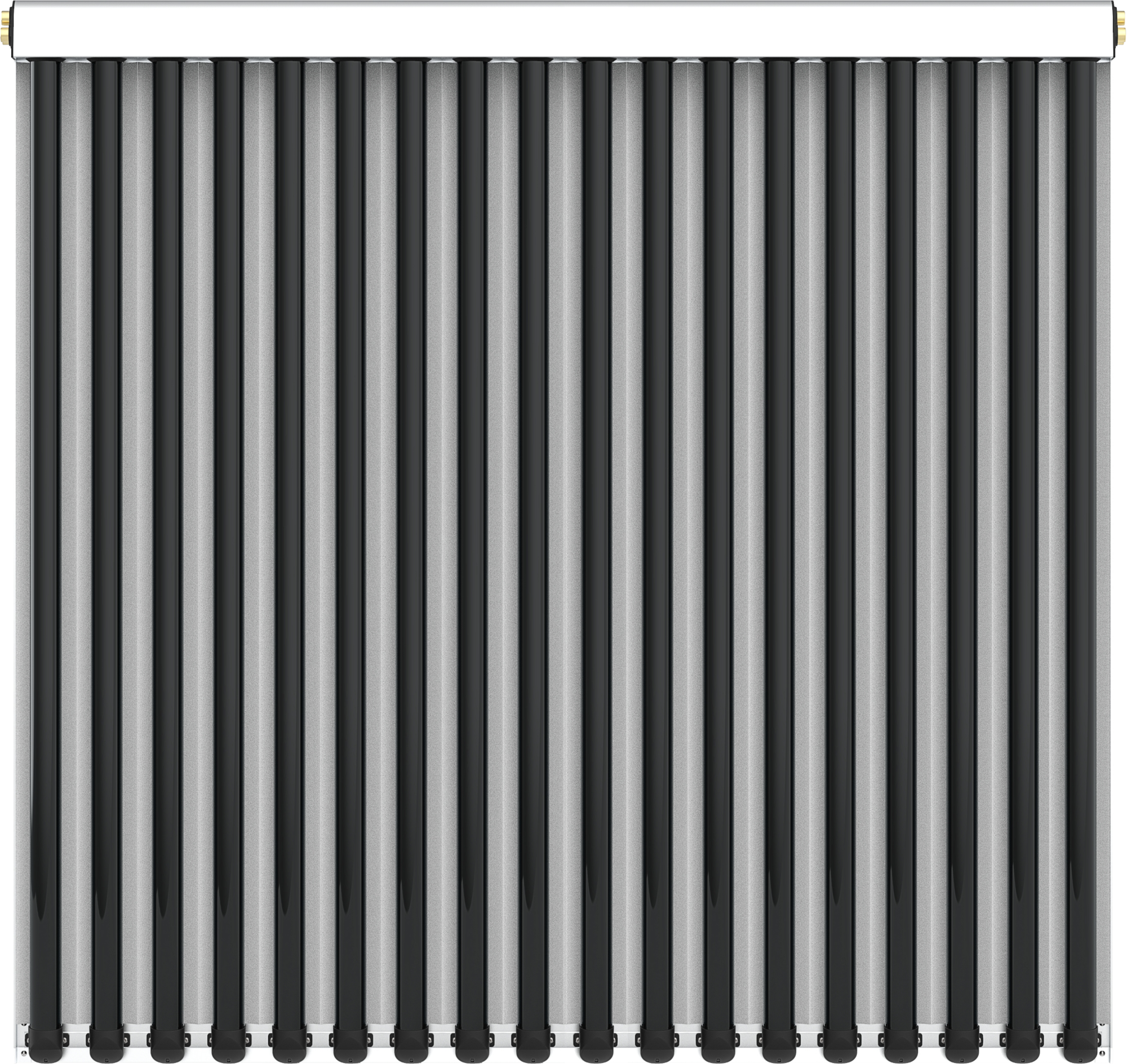

X-ray 18 Brochure

Brochure for the X-ray 18 solar thermal panel with two and three connection options.
